- GIGABYTE
Τιμή
€133 43 / 260 97 BGN
με ΦΠΑ
* ΕΞΩΤΕΡΙΚΟΣ ΠΡΟΜΗΘΕΥΤΗΣ - (1 έως 3 ημέρες)
* - Το προϊόν βρίσκεται στην αποθήκη του επίσημου εισαγωγέα της μάρκας για τη Βουλγαρία. Ο χρόνος παράδοσης είναι συνήθως από 1 έως 3 εργάσιμες ημέρες. Είναι πιθανό τη στιγμή της ολοκλήρωσης της παραγγελίας το προϊόν να έχει ήδη εξαντληθεί. Σε περίπτωση εξάντλησης του αποθέματος θα επικοινωνήσουμε μαζί σας
Σας ενημερώνουμε ότι, παρά τις προσπάθειές μας, δεν μπορούμε να εγγυηθούμε ότι οι δημοσιευμένες πληροφορίες και εικόνες δεν περιέχουν ανακρίβειες ή λάθη, τα οποία δεν μπορούν να αποτελέσουν νομική βάση για αξιώσεις.
Vendor_url
https://www.gigabyte.com/Motherboard/B760M-DS3H-WIFI6E-GEN5
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
CPU's supported
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type
14th and 13th Generation Intel® Core™ i9/i7 Processors:
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/ 5200/ 4800/ 4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Rear panel I/O
iTE® I/O Controller Chip
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button1 x reset jumper
1 x Clear CMOS jumper

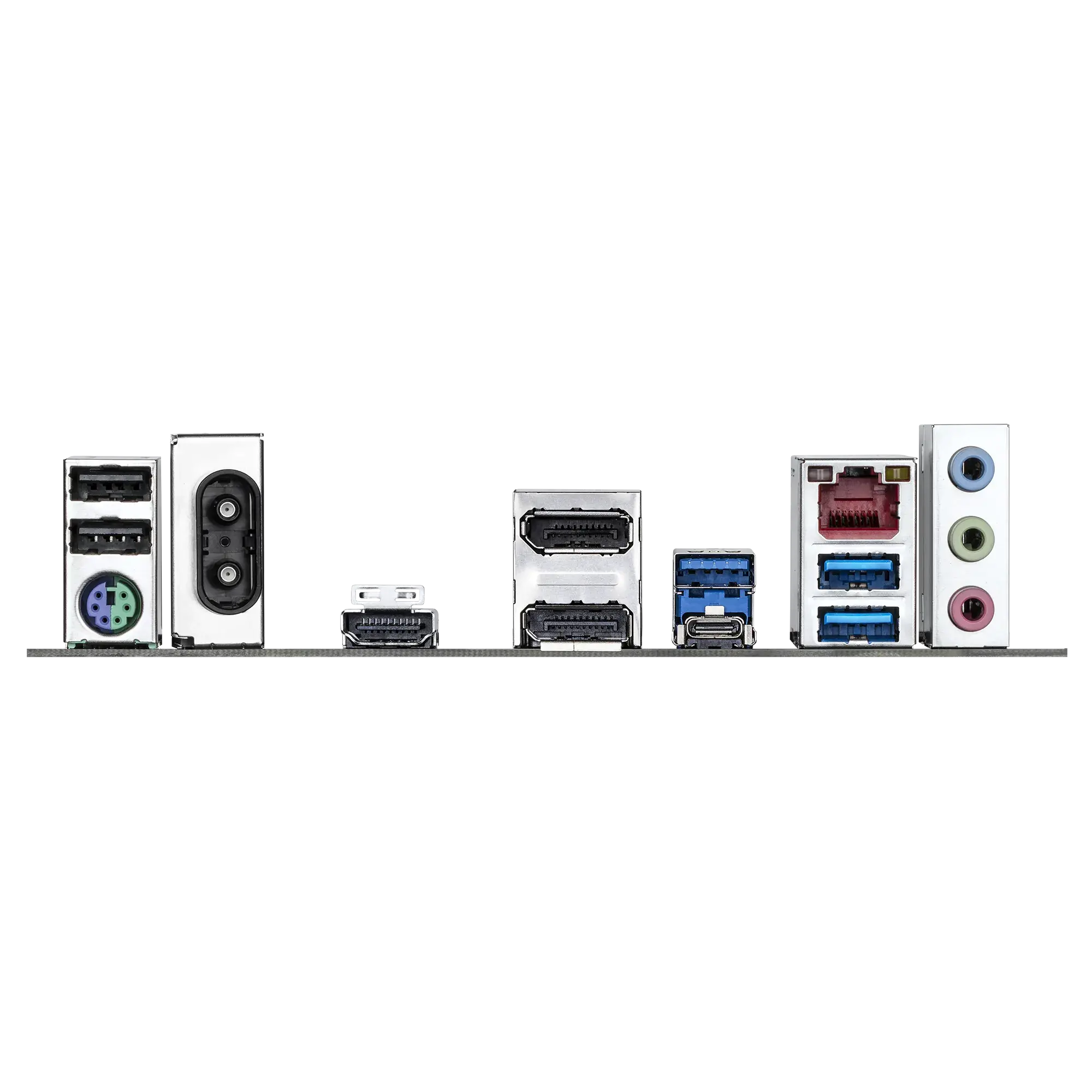

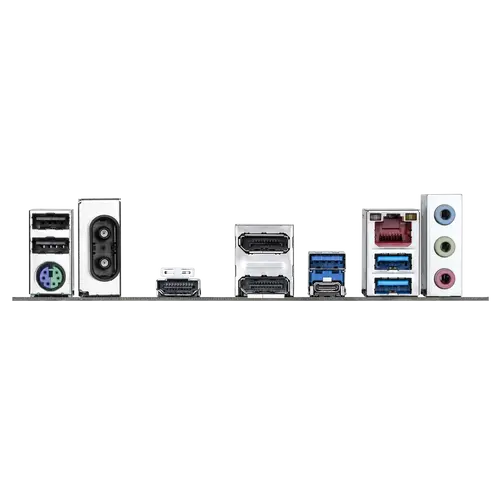

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
2 x DisplayPorts (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Lan
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Bluetooth
5.3
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
Micro ATX Form Factor
24.4cm x 24.4cm
OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Warranty
36 Months
Στοιχεία που υποβλήθηκαν από τον επίσημο εισαγωγέα για τη Βουλγαρία.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Vendor_url | https://www.gigabyte.com/Motherboard/B760M-DS3H-WIFI6E-GEN5 |
| Chipset | Intel® B760 Express Chipset |
| OS | Support for Windows 10 64-bit |
| OS | Support for Windows 11 64-bit |
| Warranty | 36 Months |
| CPU's supported | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| CPU's supported | L3 cache varies with CPU |
| Memory type | Dual channel memory architecture |
| Memory type | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Memory type | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Memory type | Support for Extreme Memory Profile (XMP) memory modules |
| Memory type | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| Memory type | 14th and 13th Generation Intel® Core™ i9/i7 Processors: |
| Memory type | 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: |
| Memory type | Support for DDR5 4800/4400 MT/s memory modules |
| Memory type | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/ 5200/ 4800/ 4400 MT/s memory modules |
| Form Factor | Micro ATX Form Factor |
| Form Factor | 24.4cm x 24.4cm |
| Audio | Realtek® Audio CODEC |
| Audio | High Definition Audio |
| Audio | 2/4/5.1/7.1-channel |
| Audio | Support for S/PDIF Out |
| Rear panel I/O | iTE® I/O Controller Chip |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | Chipset: |
| Expansion Slots | CPU: |
| Expansion Slots | * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
| Expansion Slots | - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Expansion Slots | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 |
| Wireless | - BLUETOOTH 5.3 |
| Wireless | - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| Wireless | - Support for 11ax 160MHz wireless standard |
| Wireless | Intel® Wi-Fi 6E AX210 |
| Graphics | * Support for DisplayPort 1.2 version and HDCP 2.3 |
| Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Graphics | ** Support for native HDMI 2.1 TMDS compatible ports. |
| Graphics | * Support for HDMI 2.1 version and HDCP 2.3. |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| Graphics | - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Graphics | * Support for DisplayPort 1.2 version. |
| Features | Support for Q-Flash Plus |
| Features | Support for Q-Flash |
| Features | Support for GIGABYTE Control Center (GCC) |
| Features | Support for Smart Backup |
| BIOS | Use of licensed AMI UEFI BIOS |
| BIOS | PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| BIOS | 1 x 128 Mbit flash |
| I/O | iTE® I/O Controller Chip |
| Storage | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Storage | CPU: |
| Storage | Chipset: |
| Storage | - 4 x SATA 6Gb/s connectors |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
| Storage | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| Bluetooth | 5.3 |
| Connectors | 1 x 24-pin ATX main power connector |
| Connectors | 1 x CPU fan header |
| Connectors | 3 x system fan headers |
| Connectors | 1 x front panel header |
| Connectors | 1 x front panel audio header |
| Connectors | 1 x S/PDIF Out header |
| Connectors | 1 x USB 3.2 Gen 1 header |
| Connectors | 2 x USB 2.0/1.1 headers |
| Connectors | 1 x Clear CMOS jumper |
| Connectors | 1 x 8-pin ATX 12V power connector |
| Connectors | 4 x SATA 6Gb/s connectors |
| Connectors | 1 x RGB LED strip header |
| Connectors | 2 x M.2 Socket 3 connectors |
| Connectors | Back Panel Connectors |
| Connectors | 2 x USB 2.0/1.1 ports |
| Connectors | 1 x PS/2 keyboard/mouse port |
| Connectors | 1 x HDMI port (Note) |
| Connectors | 1 x RJ-45 port |
| Connectors | 3 x audio jacks |
| Connectors | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Connectors | 2 x antenna connectors (2T2R) |
| Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| Connectors | 3 x USB 3.2 Gen 1 ports |
| Connectors | 2 x addressable RGB Gen2 LED strip headers |
| Connectors | 2 x DisplayPorts (Note) |
| Connectors | 1 x Q-Flash Plus button1 x reset jumper |
| USB | Chipset: |
| USB | - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| USB | Chipset+USB 2.0 Hub: |
| USB | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| USB | - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| USB | - 2 x USB 2.0/1.1 ports on the back panel |
| Βάρος | 0.00kg |
Στοιχεία που εξήχθησαν αυτόματα από το διαδίκτυο. Η ακρίβειά τους δεν είναι εγγυημένη. Για αναλυτικές πληροφορίες, παρακαλούμε επικοινωνήστε μαζί μας ή επισκεφθείτε τη σελίδα του κατασκευαστή.
| Χαρακτηριστικό | Τιμή |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| Memory Type | DDR5 |
| Memory Slots (count) | 2 |
| Max Memory (GB) | 64 |
| M.2 Slots (count) | 2 |
| SATA Ports (count) | 4 |
| PCIe x16 Slots (count) | 1 |
| Wi-Fi Built-in | Wi-Fi 6E |
| LAN Speed | 2.5 Gbps |
| USB-C Ports (count) | 1 |
| RGB Lighting | No |
| Βάρος | 0.00kg |
Προσοχή! Επειδή δεν υποβάλλουν όλοι οι εισαγωγείς σωστά τα στοιχεία των προϊόντων, οι παρακάτω πληροφορίες έχουν εξαχθεί με τη βοήθεια τεχνητής νοημοσύνης από διάφορες πηγές στο διαδίκτυο και δεν είναι 100% ακριβείς. Αν έχετε αμφιβολίες για κάτι, παρακαλούμε επικοινωνήστε μαζί μας για να ελέγξουμε με ακρίβεια τα χαρακτηριστικά που επιθυμείτε.
Дънна платка GIGABYTE GB B760M DS3H WF6E GEN5
Изживейте производителност от ново поколение с дънната платка GIGABYTE B760M DS3H WF6E GEN5. Проектирана за процесори Intel от 12-то, 13-то и 14-то поколение, тя разполага с PCIe 5.0 за M.2 SSD, вграден Wi-Fi 6E и стабилно захранване за безупречен гейминг и работа.
Ключови Предимства
- Gen5 M.2 поддръжка — Един PCIe 5.0 M.2 слот осигурява светкавични скорости на трансфер за най-бързите NVMe SSD.
- Wi-Fi 6E свързаност — Интегрираният Wi-Fi 6E предлага ултра бързи безжични скорости и ниска латентност за онлайн игри и стрийминг.
- DDR5 памет — Двуканалната DDR5 поддръжка осигурява по-висока честотна лента и подобрена ефективност спрямо предишните поколения.
- 2.5GbE LAN — Високоскоростна кабелна мрежа осигурява надеждна и бърза връзка за взискателни задачи.
Технически Спецификации
| Спецификация | Стойност |
|---|---|
| Сокет | LGA1700 |
| Форм фактор | Micro-ATX |
| Чипсет | Intel B760 |
| Тип памет | DDR5 |
| Слотове за памет | 2 |
| Максимална памет | 64 GB |
| M.2 слотове | 2 |
| SATA портове | 4 |
| PCIe x16 слотове | 1 |
| Wi-Fi | Wi-Fi 6E |
| LAN скорост | 2.5 Gbps |
| USB-C портове | 1 |
Какво има в кутията
- Дънна платка
- Ръководство за потребителя
- Заден панел
- SATA кабели
- Wi-Fi антена
